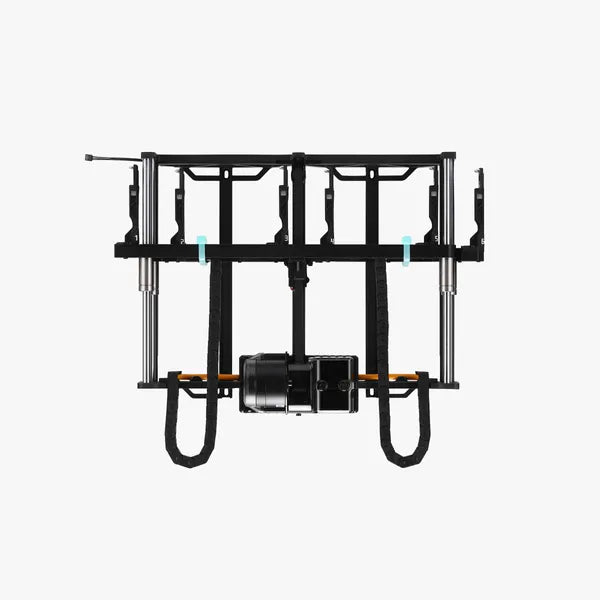

Induction Hotend Rack Assembly - FAC193

The Induction Hotend Rack Assembly is the core component of the Vortek system, comprising key modules such as the 3513 Induction Hotend Rack Motor, Induction Hotend Rack Belt Assembly, Induction Hotend Dock Assembly, and Induction Hotend Rack Control Board (excluding the Induction Hotend Latch Actuator). As the central functional unit of the system, it integrates all core functions, including hotend storage, automated pick-and-place, in-position detection, and rack positioning calibration.

Installation

Learn more about the replacement of Induction Hotend Rack Assembly on Bambu Lab Wiki.

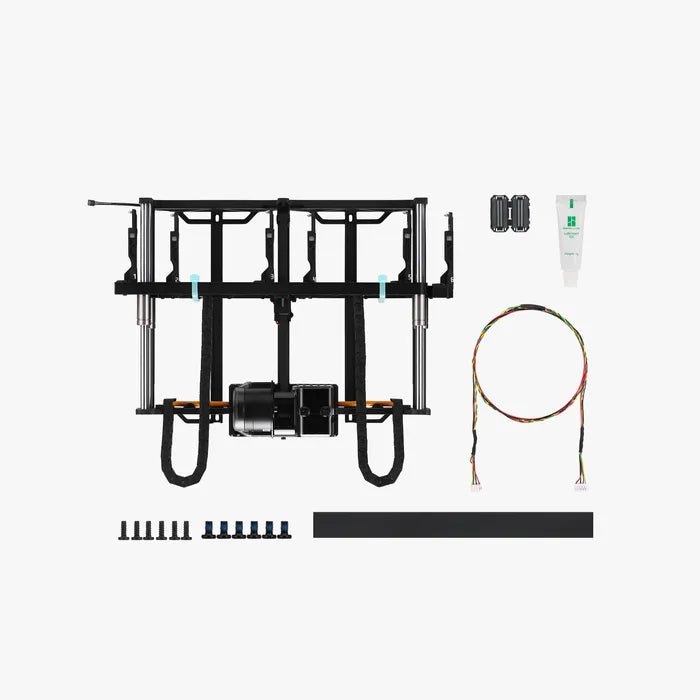

In the Box

- Induction Hotend Rack Assembly *1
- Induction Hotend Rack Control Board – MC Board Cable *1
- Magnetic Ring *1
- M3x5 Screw *6
- M3x6 Screw *6
- Lubricant Oil *1

Compatibility

H2C and H2C Laser
