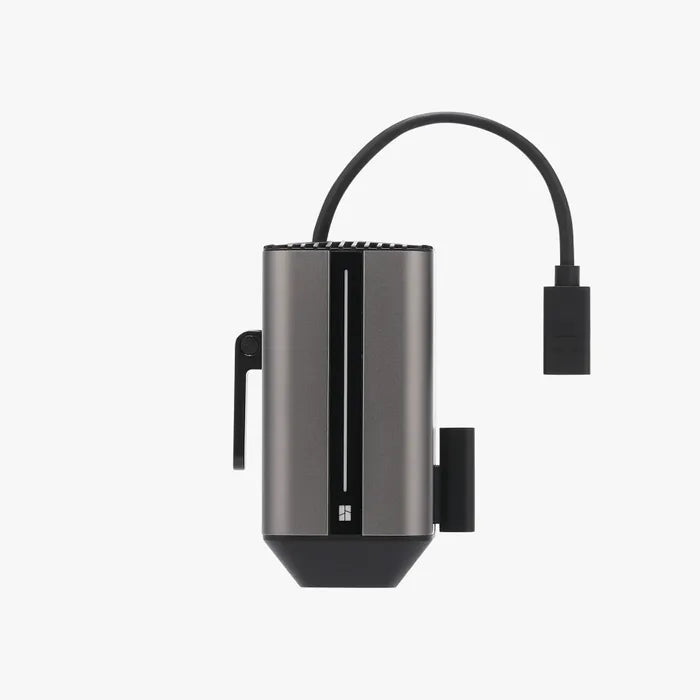

Laser Module - H Series
A Hard Core Laser Machine
- High-Power 455nm Laser
- High Positioning Accuracy
- Built-In Flame Sensors
- Air Assist Technology
Powerful Cutting Efficiency
With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.
Contact-less 3D Mesh*
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.
Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.
Flame Sensor
The H2 chamber is equipped with a flame sensor that can instantly detect fire. In the event of a fire, it quickly sends alerts through push notifications and a buzzer, minimizing potential risks.
What is the difference between 40W, and 10W?
Max Cutting Thickness
| Laser Module | 40 W | 10 W |
| Basswood Plywood | 15 mm | 6 mm |
| Birch Plywood | 15 mm | 6 mm |
| Bamboo Board | 6 mm | 3 mm |
| Black Acrylic | 15 mm | 3 mm |
| Cork Sheet | 4 mm | 2 mm |
| Stainless Metal | 0.1 mm | 0.05 mm |
Max Cutting Speed (Single Pass)
| Laser Module | 40 W | 10 W |
| 3mm Basswood | 16 mm/s | 5 mm/s |
| 4mm Basswood | 15 mm/s | 4 mm/s |
| 6mm Basswood | 10 mm/s | 2 mm/s |
| 10mm Basswood | 4 mm/s | / |
Product Specifications
| Laser Type |
Semiconductor Laser
|
|
Laser Wavelength
|
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
|
|
Laser Power
|
10 W ± 1 W
40 W ± 2 W
|
|
Laser Spot Dimension
|
10 W：0.14 x 0.03 mm
40 W：0.14 x 0.2 mm
|
|
Supported Material Type
|
Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
|
|
Max Engraving Speed
|
10 W：400 mm/s
40 W： 1000 mm/s
|
|
Laser Safety Class for Laser Module
|
Class 4
|
|
Overall Laser Safety Class
|
Class 1
|
|
Engraving Area
|
10 W: 310 mm x 270 mm
40 W: 310 mm x 250 mm
|
|
Ventilation Pipe Adapter Outer Diameter
|
100 mm
|
What's in the box
| Laser Module (10 W) |

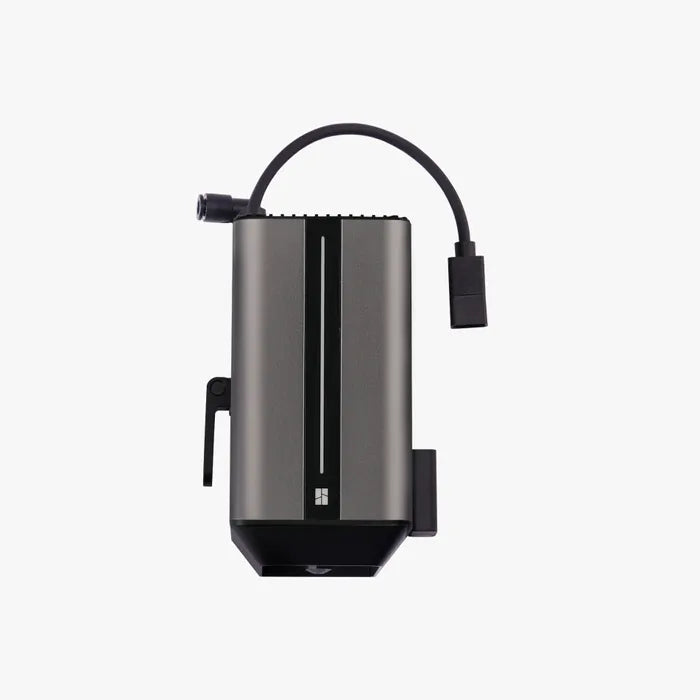

Laser Module (40 W)
|
|
1. 10 W Laser Module - 1 pcs
2. Laser Lens - 1 pcs 3. User manual - 1 pcs |
1. 40 W Laser Module - 1 pcs
2. Laser Lens - 1 pcs
3. User manual - 1 pcs
|
1.What are the differences between the 10W and 40W laser modules? How should I choose？
A: Both the 10W and 40W high-performance blue laser modules process wood, rubber, metal, leather, dark acrylic, and stone. However, due to differences in power output and module size, there are a few key distinctions: maximum cutting thickness for basswood is 6mm(10W) vs 15mm(40W); maximum engraving speed 400mm/s(10W) vs 1000mm/s(40W); and working area 310mm(X)×270mm(Y) with 280mm maximum processing height (10W) vs
