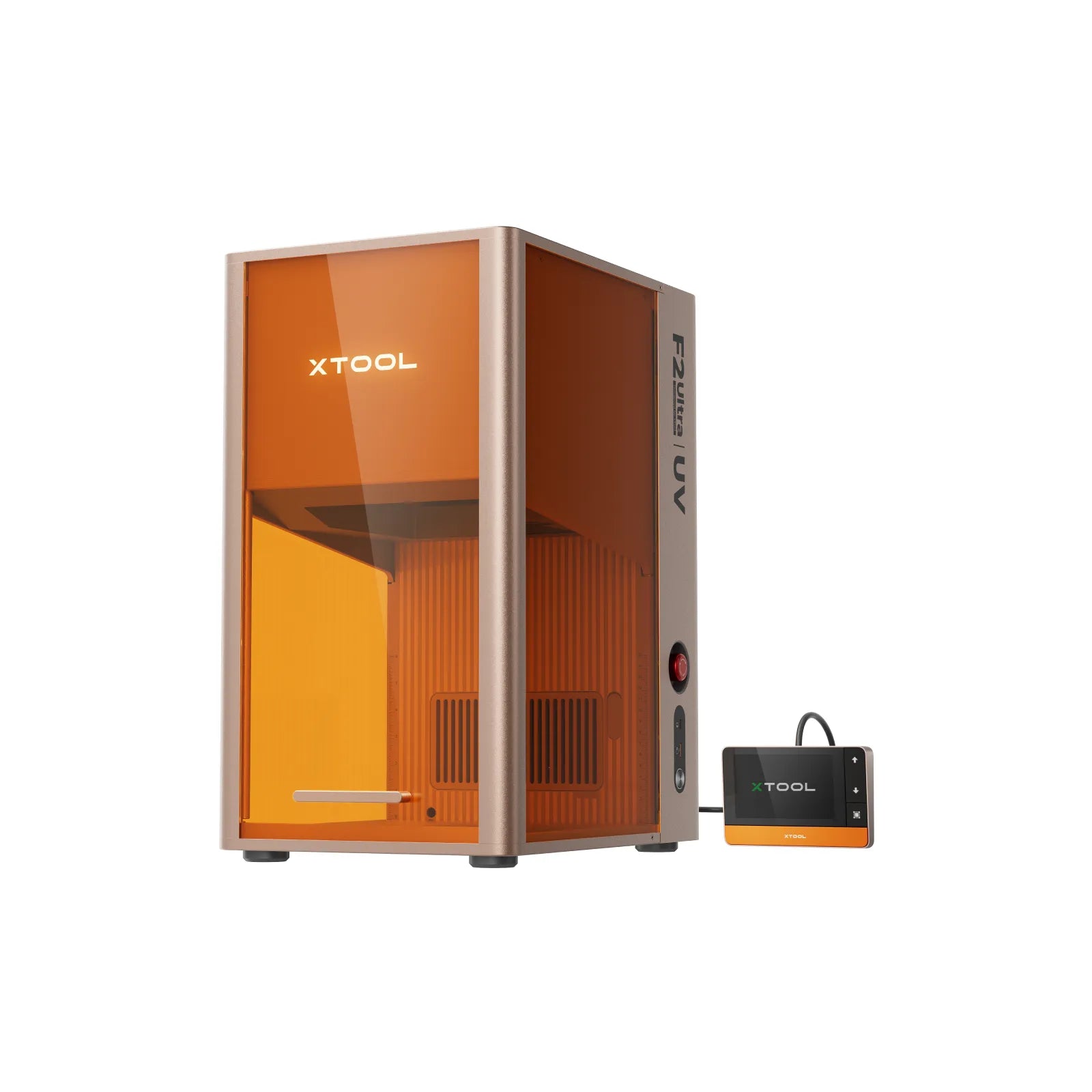

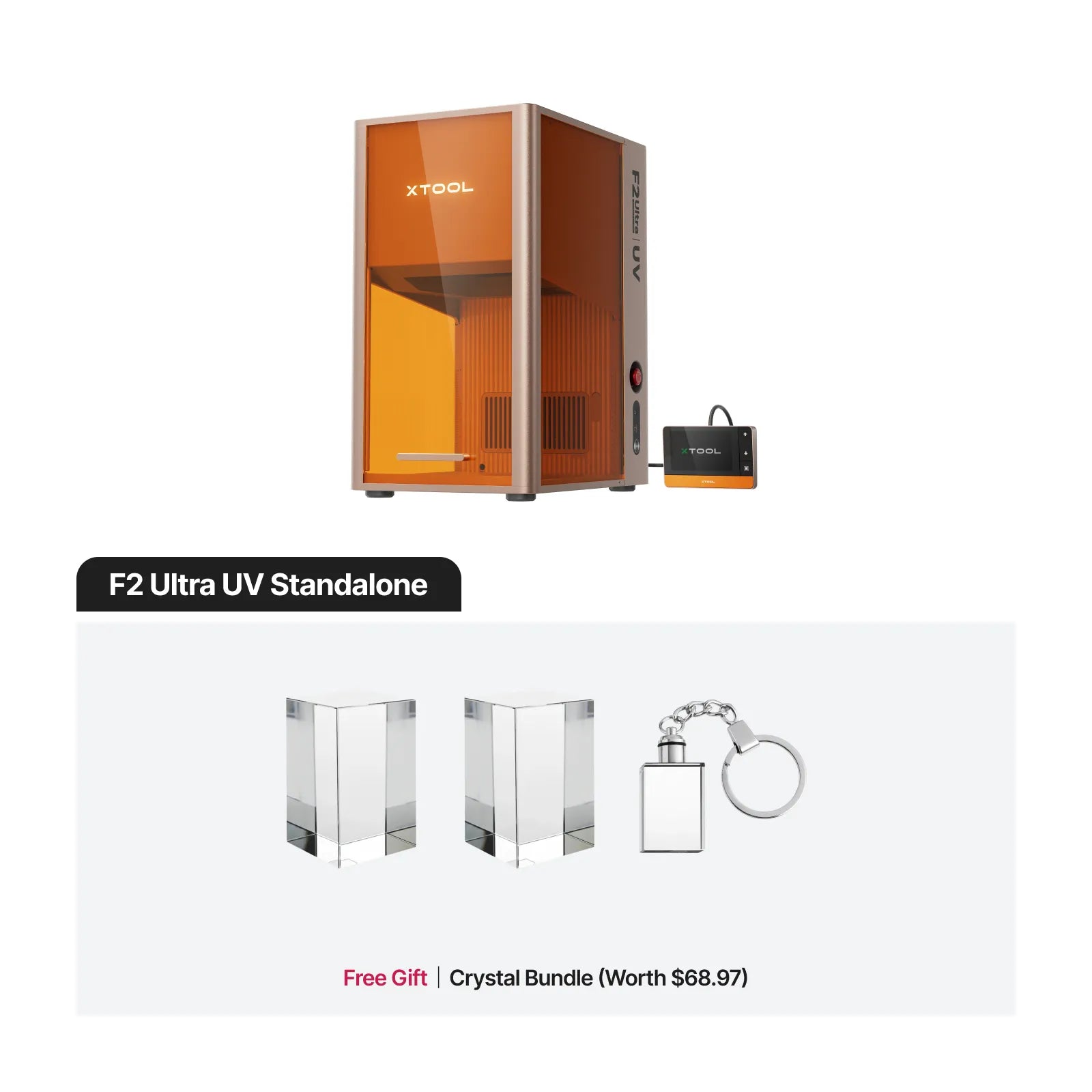

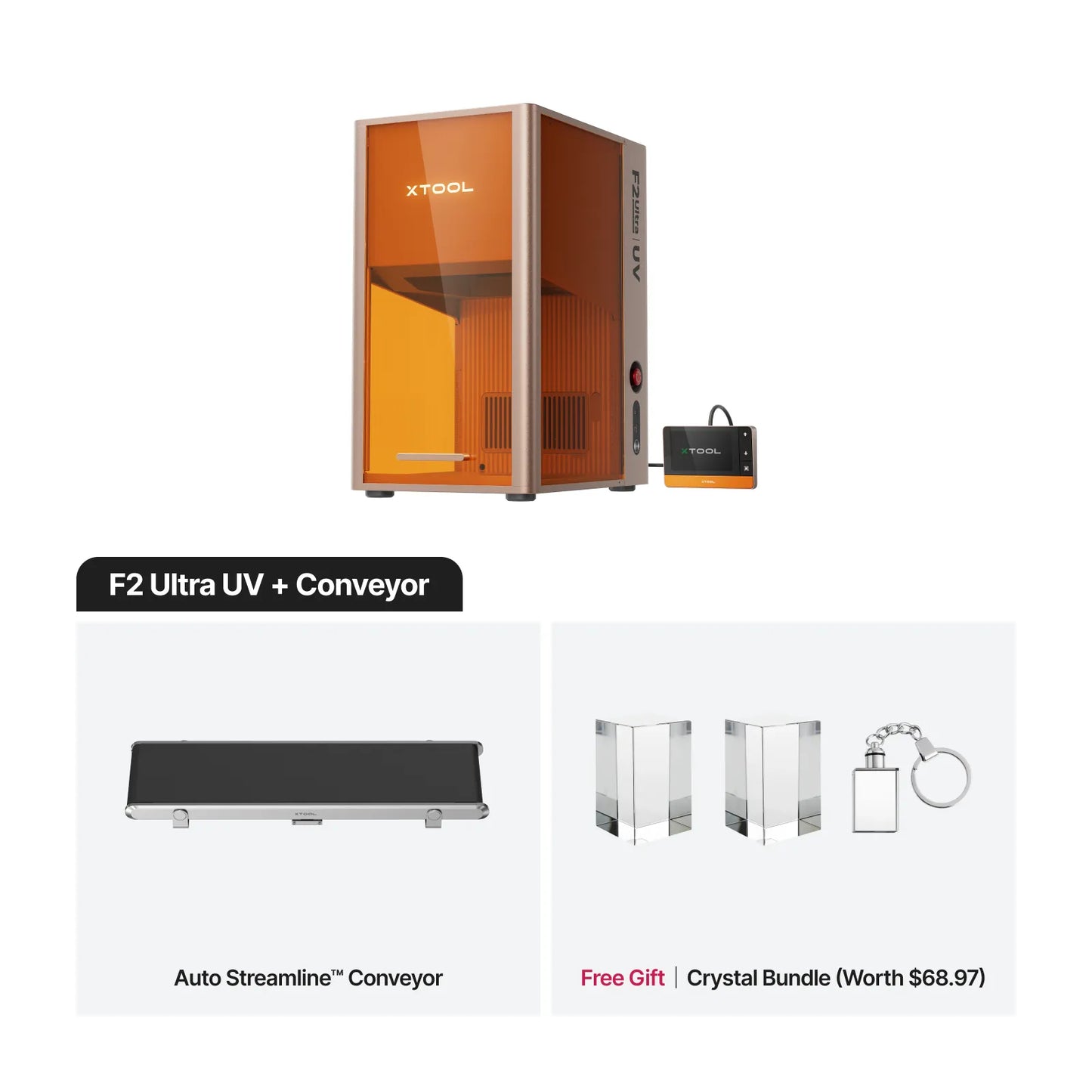

xTool F2 Ultra UV 5W UV Laser Engraver
-
Master of Glass. Excels in 3D inner engraving, embossing, cutting, and precision flat & rotary engraving.
-
Unmatched Material Compatibility. Compatible with crystal, glass, ceramic, acrylic, plastic, metal, wood, and more.
-
Micron-Level Precision, Flawless Detail. 100× finer than other lasers, capturing every nuance.
-
Burn-Free Edges, Clean Results. With cold processing, no prep or polishing—perfection in one step.
-
User-Friendly. Dual 48MP cameras, one-click 2D to 3D smart software, 15,000 mm/s speed, large working area.

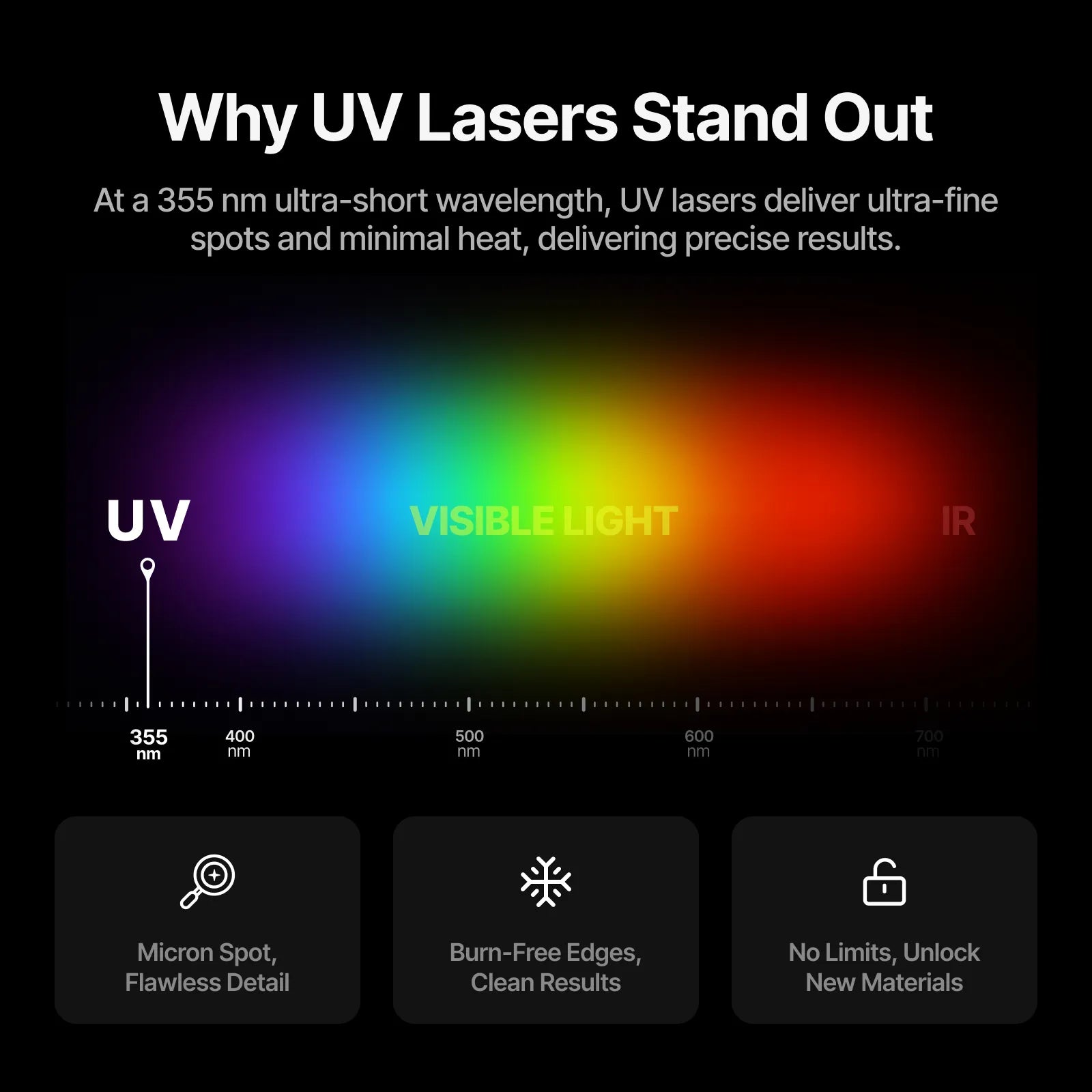

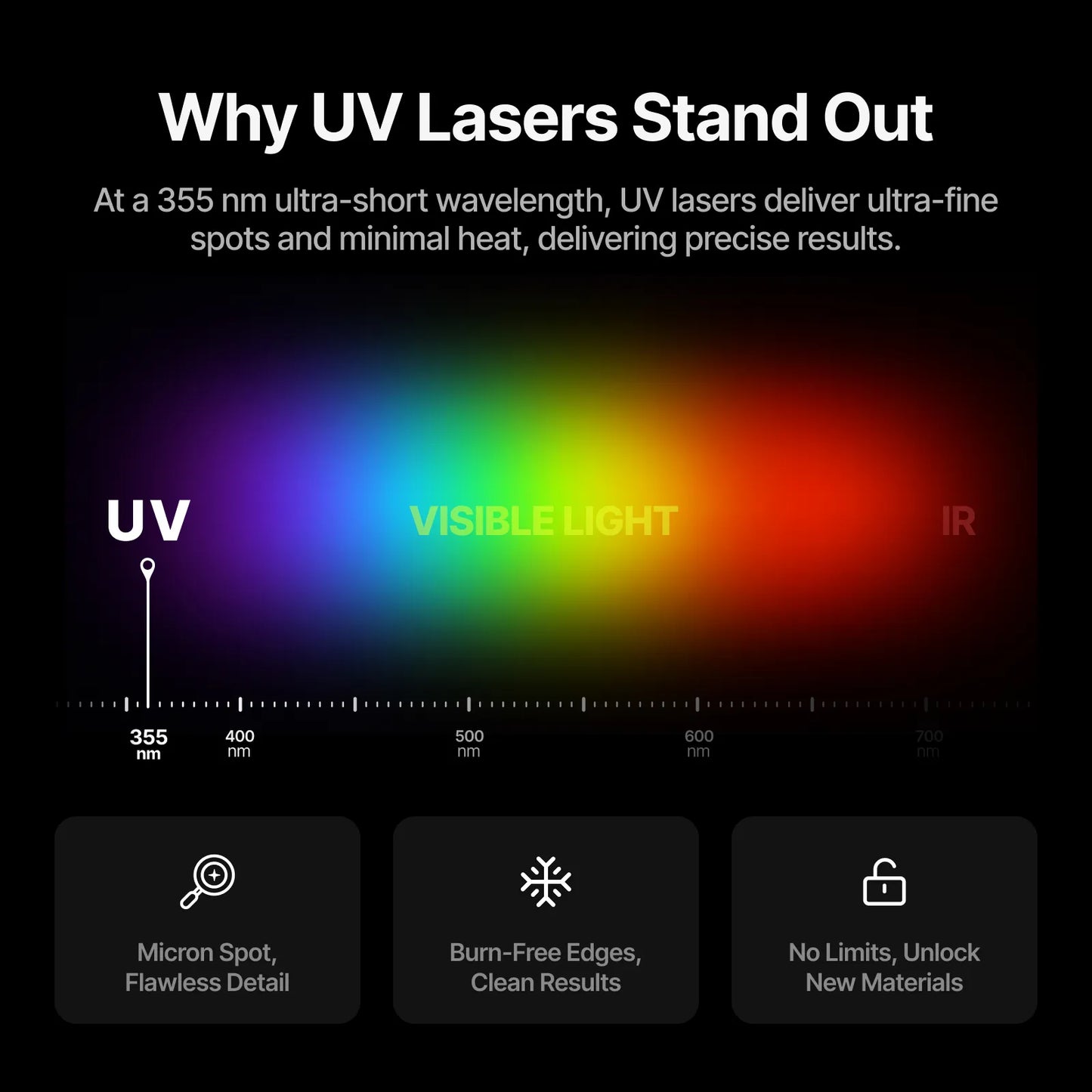

UV Laser, The Future of Precision, Purity and Possibility.
Features
Magic Inside Glass, Moments Shine Forever
UV laser is the optimal choice for detailed glass work. It enables permanent 3D inner engraving while keeping the surface entirely untouched. From glass blocks to crystal balls and beyond, every shape transforms into a stunning, one-of-a-kind creation with enhanced artistic and collectible value.
Glass Surfaces, A Canvas for Masterpieces
The F2 Ultra UV engraves microscopic details directly on glass with no prep or cleanup. It supports embossing, cutting, and rotary engraving, unlocking limitless possibilities and taking your glass art to a higher level.
Superior Precision, Streamlined Production
Superior Precision, Streamlined Production
Traditional glass engraving is a tedious, multi-step ordeal involving surface coating, long drying times, and messy post-wash scrubbing that can take over an hour per piece. The xTool F2 Ultra UV revolutionizes this by enabling direct-to-surface engraving, skipping the prep entirely and shrinking a 20-min process into just 5 minutes of pure creation.No Dark Edges, One Step to PerfectionThe UV laser’s high photon energy breaks molecular bonds with minimal heat—no burns, no charring, no damage. No pre-coating or polishing needed, just clean, precise results. That’s the power of cold processing.

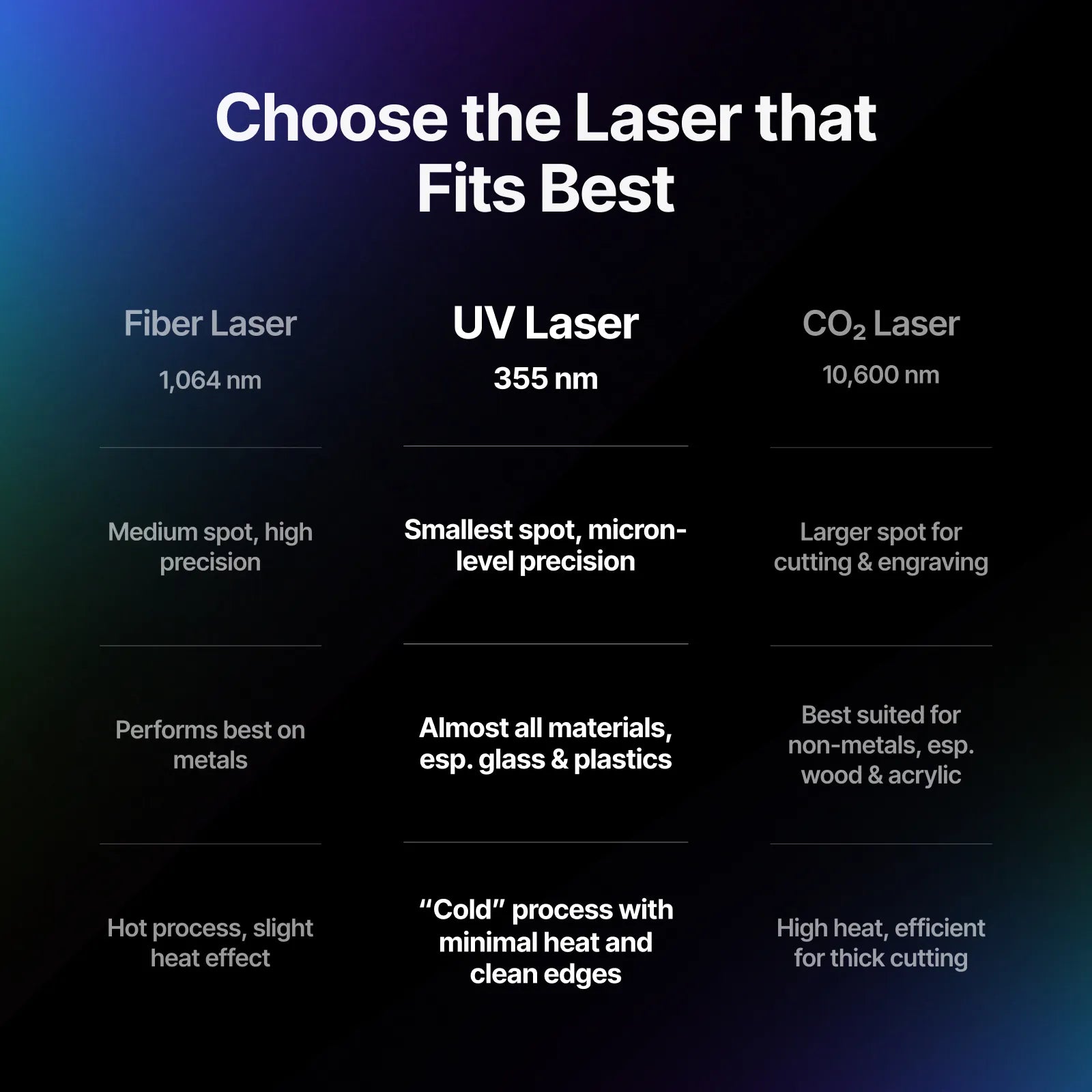

Micron Precision for Museum-Grade DetailEngineered for extreme precision, the F2 Ultra UV features an ultra-fine laser spot—much smaller than typical fiber or CO₂ lasers. Its optimized vector-fitting algorithm with 0.001 mm resolution brings every detail to life with stunning clarity.
Unlock More Materials, Even What Others Can't
As the ultimate laser for virtually all materials, the F2 Ultra UV does what others can’t: capturing fine detail even on almost all acrylic, crystal, ceramic, silicone, plastic, and more, offering unparalleled material compatibility.

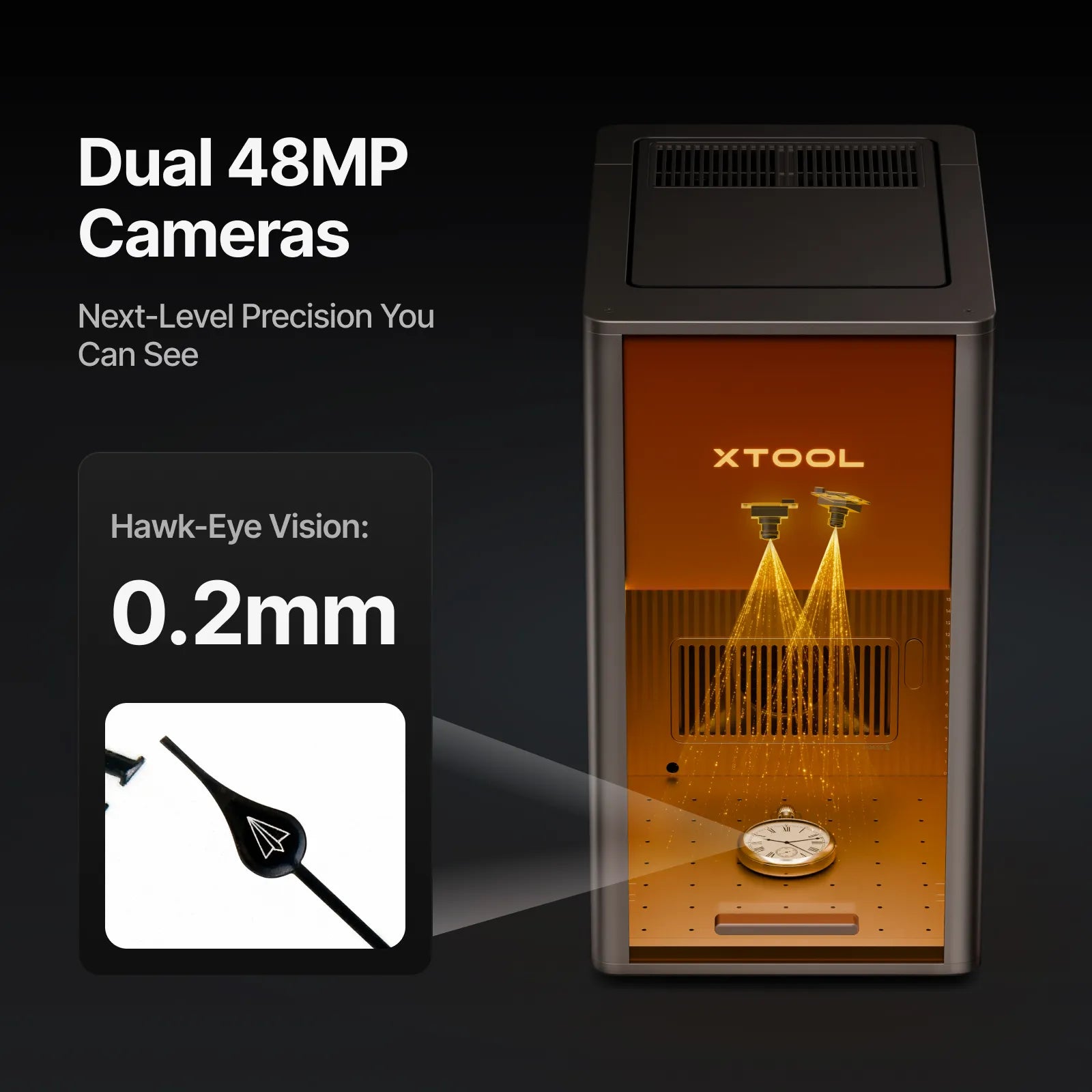

Dual 48MP Cameras: See It, Get It
The industry’s first dual-camera UV laser system. Two cameras handle automatic positioning and focusing, achieving 0.2 mm accuracy—60% more precise than single-camera systems. Every process is consistently effortless, ensuring every detail is exactly as you imagined.

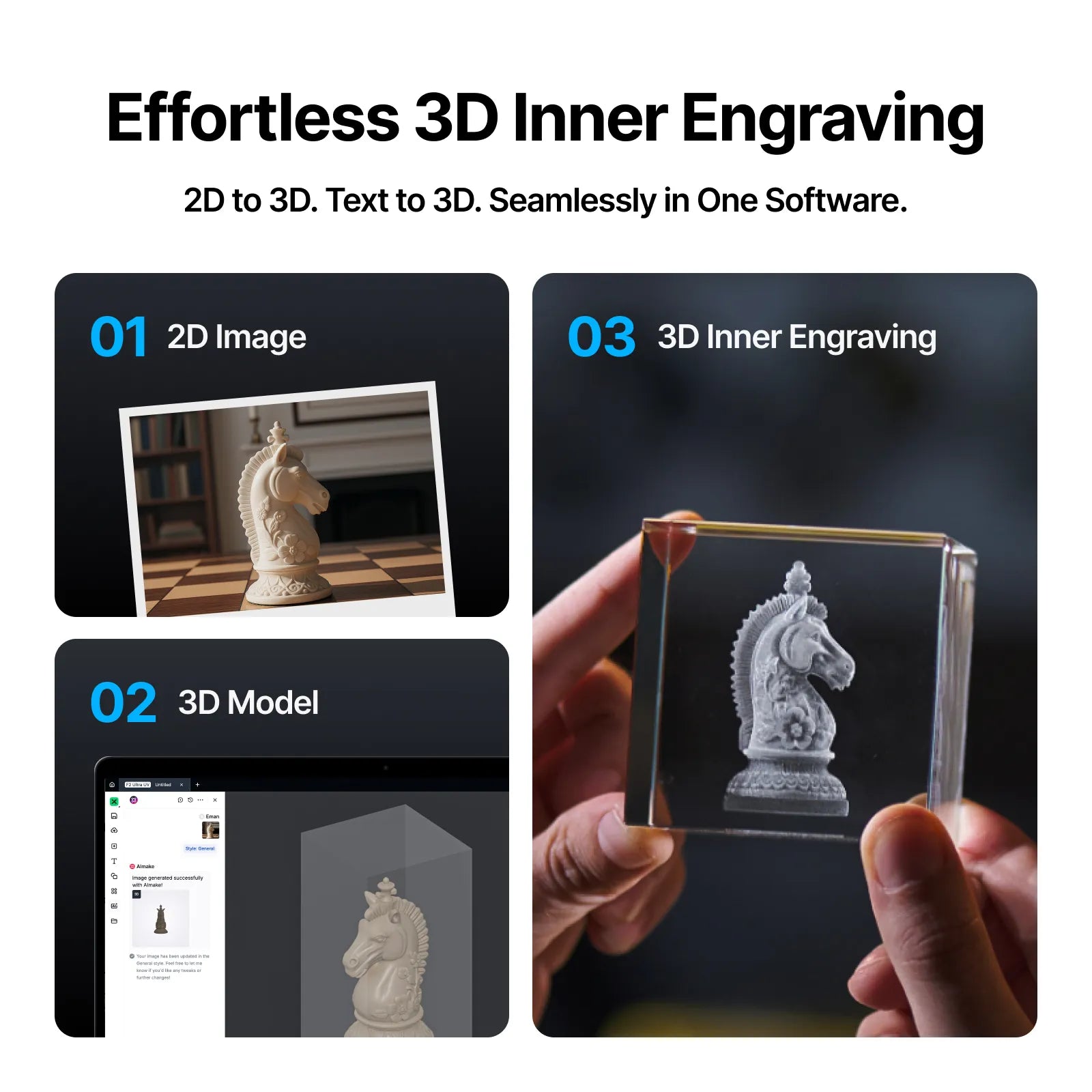

From 2D to 3D Masterpieces, Incredibly Easy
xTool Studio makes 3D inner engraving easy for everyone with advanced AI that turns text and images into 3D—no prior modeling skills required. Autofocus, accurate positioning, intuitive drag-and-drop controls, and smart parameter suggestions work in concert to deliver precise, reliable results.
Bigger Workspace, Greater Potential

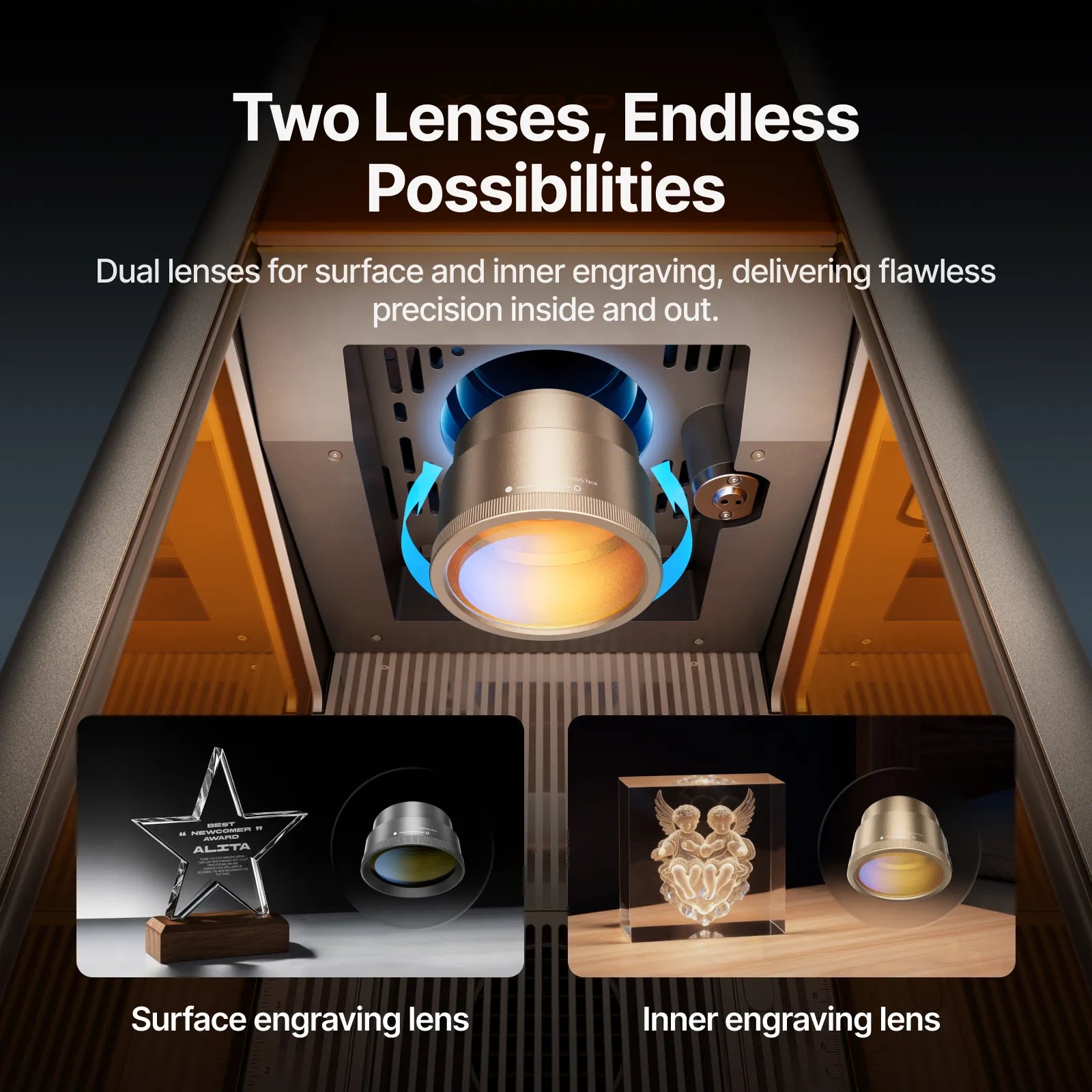

Equipped with two switchable field lenses, the F2 Ultra UV supports both inner and surface engraving with a large workspace, achieving the ideal balance of power, size, and engraving quality. With the conveyor attached, you gain even more flexibility and creative freedom.
15,000 mm/s: The Fastest in the Industry for Maximum Output
Rotary, Batch, Curved, Ready for Anything
Unlock 360° Engraving Freedom
Batch Process for Maximum Efficiency
Curved Engraving, Effortlessly Done

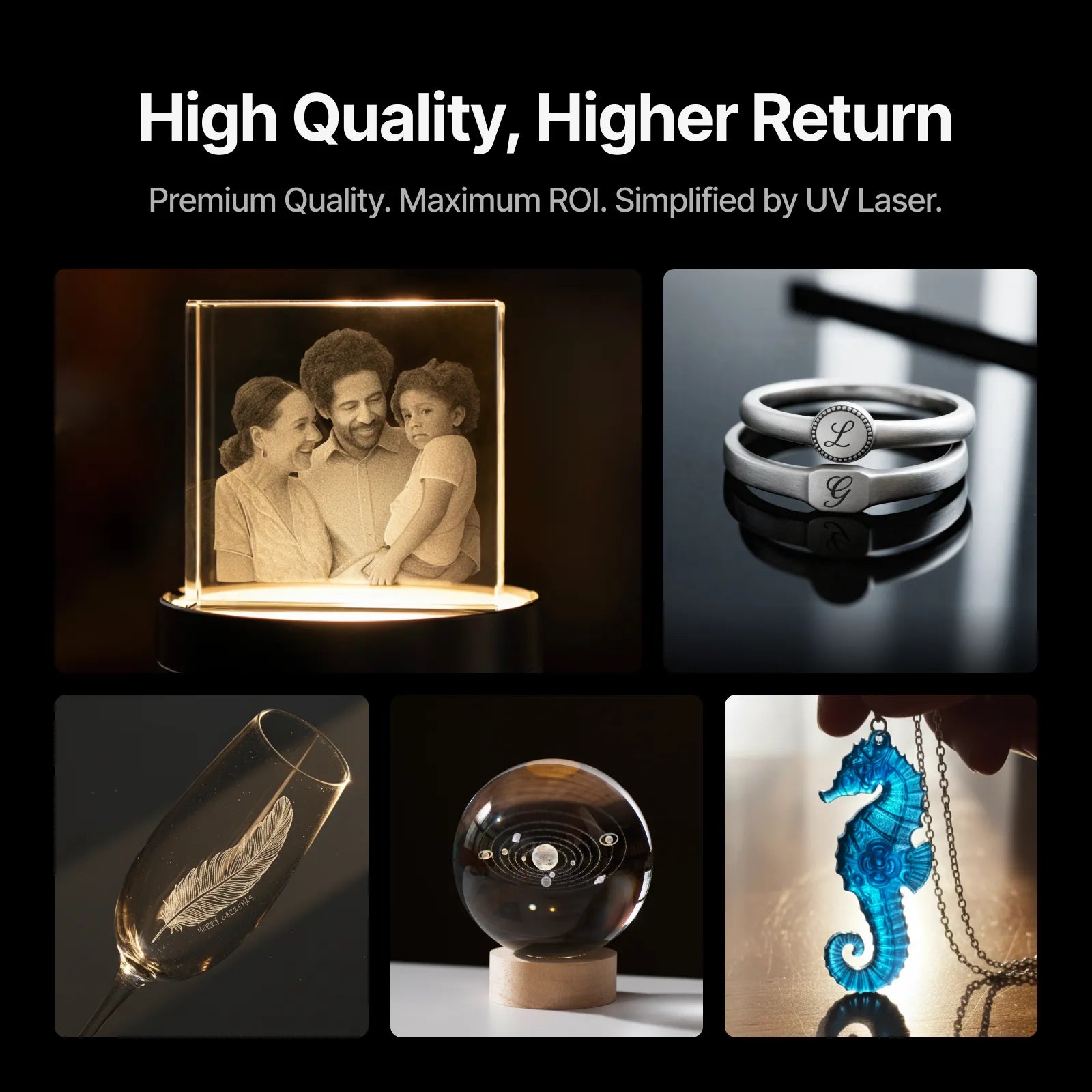

Premium Quality Drives Bigger Profits
![]()
Safe by Design, Maintenance Made Easy
Smart Humidity ProtectionEnhanced laser sealing and drying for improved humidity protection and longer lifespan.
Stay Cool, Stay QuietAirflow design optimized with fluid dynamics for efficient cooling and reduced noise.Specifications

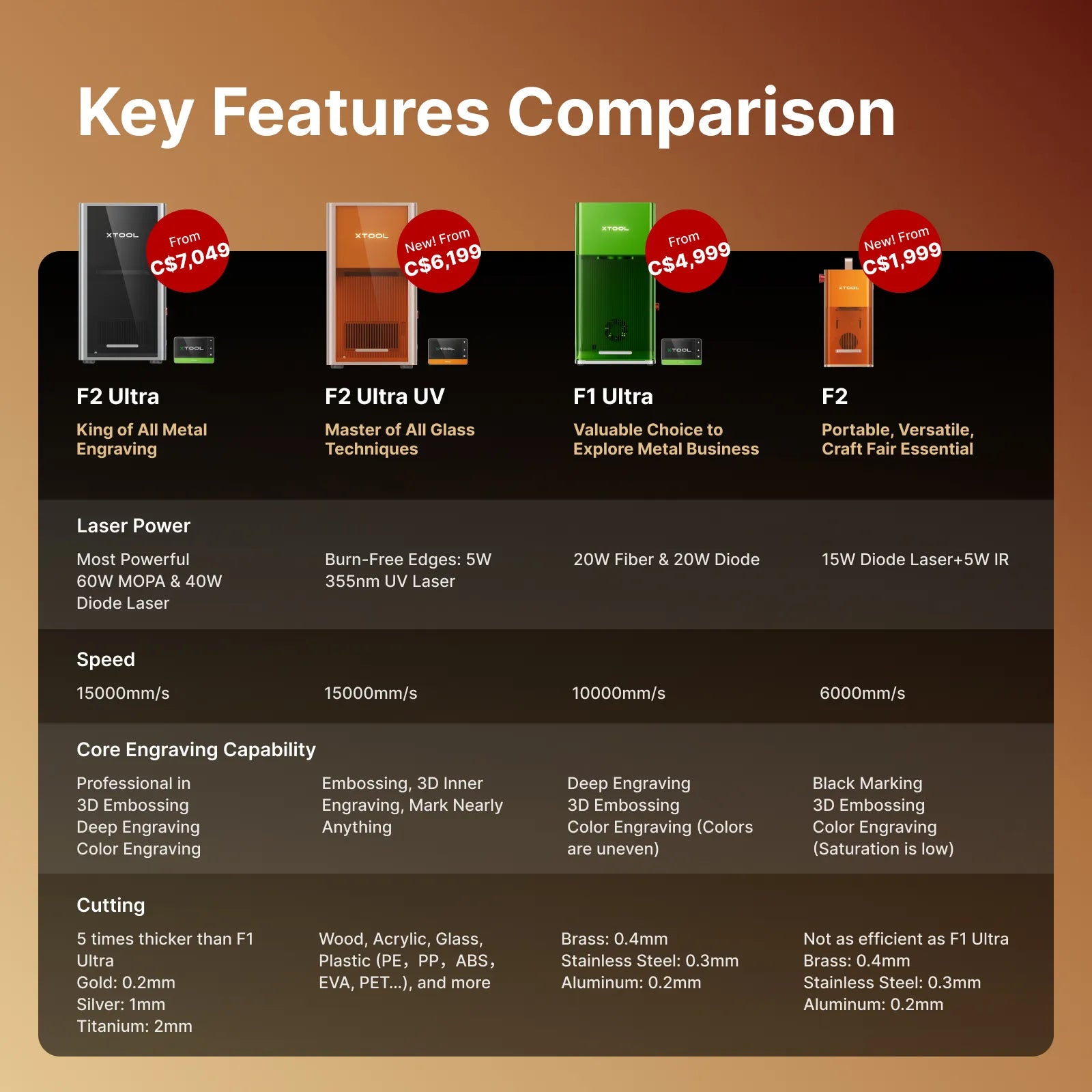

xTool F2 Ultra UVBuy NowCompare all xTool modelsProcessing CapacityLaser Type5W 355 nm UV Laser
Processing ModeLaser Engraving
Laser Cutting
Supported MaterialsLaser Engravable: Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more
Laser Cuttable: Glass, Plastics (PE, PP, EVA, PET, etc.), Fabric, Leather, Acrylic (Not Fully Transparent), Paper, Wood, and More
Working AreaInner Engraving: 2.8" × 2.8" (70 mm × 70 mm)
Surface Engraving: 7.9" × 7.9" (200 mm × 200 mm)
Surface Engraving with Conveyor: 7.9" × 19.7" (200 mm × 500 mm)
Max. Working Speed590.55 ips (15,000 mm/s)
Max. Laser Cutting Capacity (Basswood)0.59" (15 mm) in Multiple Passes
Max. Laser Cutting Capacity (Acrylic)0.47'' (12 mm) in Multiple Passes
Max. Processing Height5.9'' (150 mm)
Max. Rotary Engraving Diameter5.9'' (150 mm)
Smart SoftwareSupported SoftwarexTool Studio
Operating SystemWindows/macOS
Connection MethodUSB/Wi-Fi/IP
Supported Files2D: SVG, DXF, JPG, JPEG, GIF, PNG, BMP, and WEBP
3D: STL, OBJ, AMF, 3MF, GLB, PLY
AImake CompatibilityYes
Easy OperationPre-assembledYes
Built-in Camera48 MP Dual Cameras
Positioning MethodCamera Positioning
Focus ModeAutofocus
Ranging SystemLiDAR Ranging System
Preview MethodSmart Camera Preview
High-speed Light Live Preview
Accuracy & PrecisionLaser Spot Size0.02 × 0.02 mm
Positioning Accuracy0.0079" (0.2 mm), Camera
Ranging Accuracy0.0079" (0.2 mm), Camera
Image Resolution48 MP
Motion Resolution0.00005'' (0.00133 mm) (Inner Engraving)
Vector Fitting Resolution0.00004'' (0.001 mm)
GeneralSafety CertificationClass 4 Laser Safety
Machine Dimensions11.6'' × 16.9'' × 20.5'' (294 mm × 429 mm × 520 mm)
Machine Weight49.6 lb (22.5 kg)
Max. Machine Input Power348W
Power Adapter Input Voltage110 V - 240 V, AC 50/60 Hz
Storage Temperature-10 ℃ - 60 °C
Operating Temperature10 ℃ - 30 °C
Storage Humidity10 - 60% Rh
FAQ
Q: Why only 5W? Is it enough?
A: 5W is the optimal balance for desktop size, cost, and high-precision engraving.
UV lasers have a short wavelength and high-energy photons, which directly break molecular bonds with very little heat. This “cold processing” delivers much higher energy density and precision than traditional heat-based lasers.That’s why 5W is considered the golden power level for desktop UV systems. Even for demanding tasks like 3D engraving inside glass, the F2 Ultra UV typically uses only around 60% of its power—leaving plenty of performance headroom.
Q: Can F2 Ultra UV and F2 Ultra swap field lenses?
A: Absolutely not. Please note that F2 Ultra UV and F2 Ultra are not the same machine. They use different light sources and different interfaces, so their field lenses are not interchangeable.
The key difference:
They are two machines with completely different “engines.” They share the “F2 Ultra” flagship series name—indicating they are both high-end galvanometer systems—but they are designed for entirely different materials and applications.

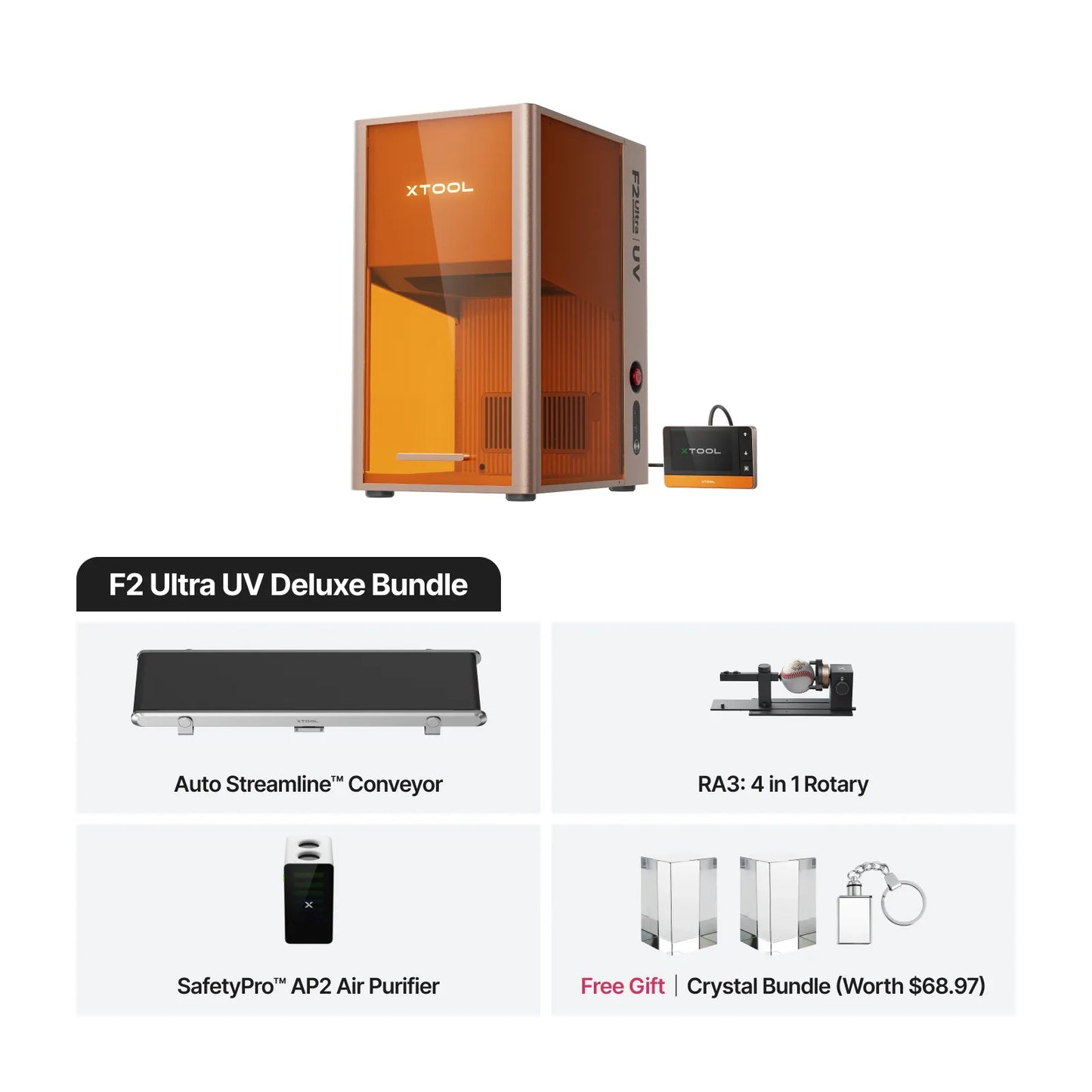

Q: What accessories are supported?
A: Rotary: RA3 / RA2 Pro
Automation: Auto Streamline™ Conveyor, Pedal/Button Switch
Safety & Purification: Fire Safety Set, Safetypro™ AP2 Purifier, Safetypro™ IF2 Inline Fan
