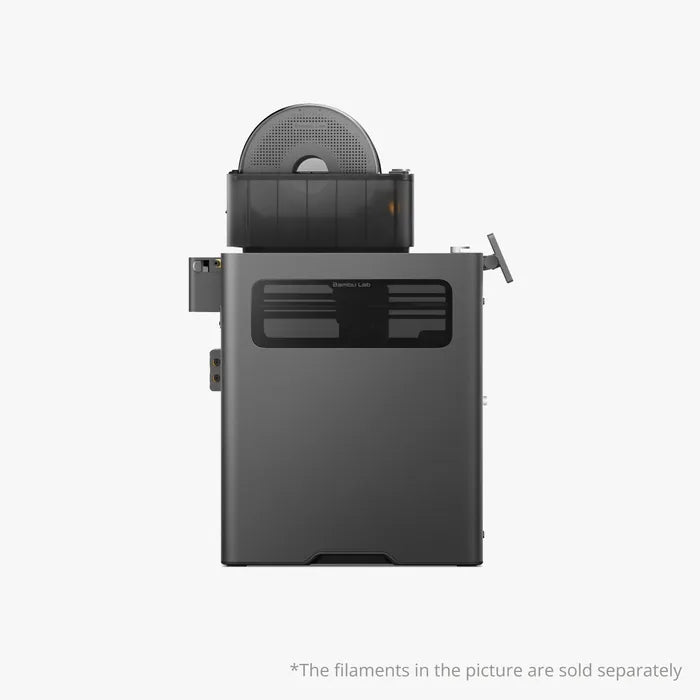

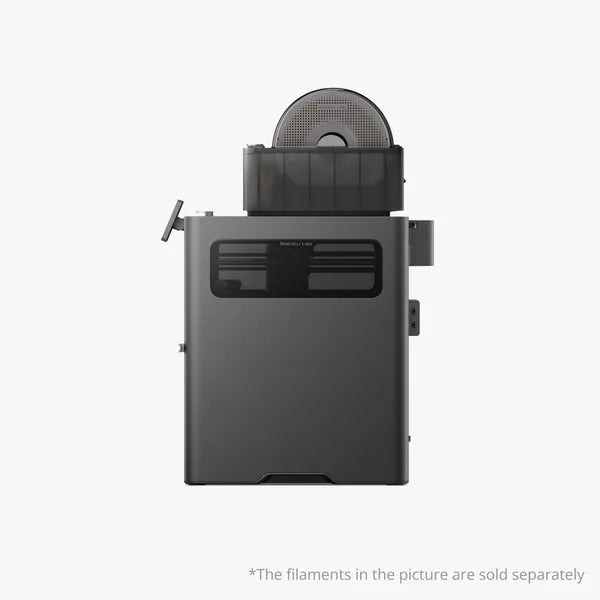

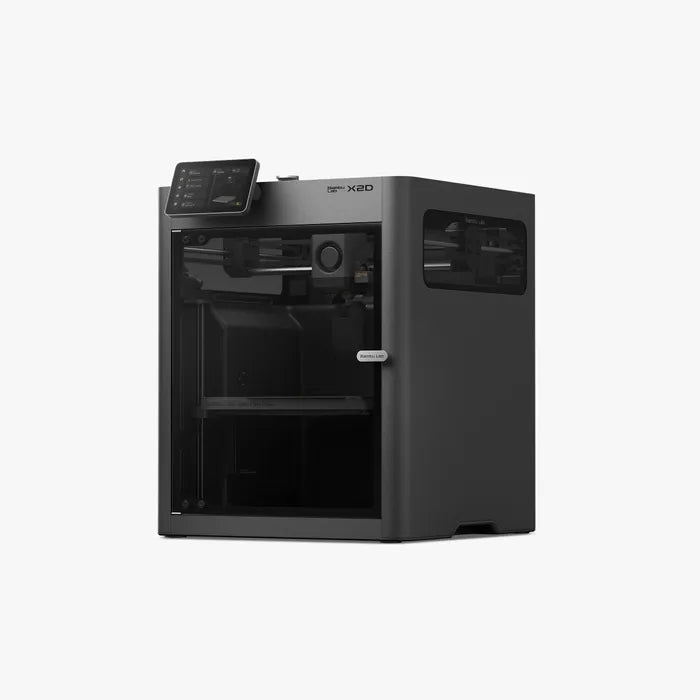

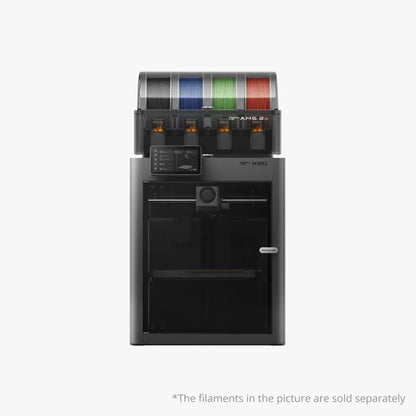

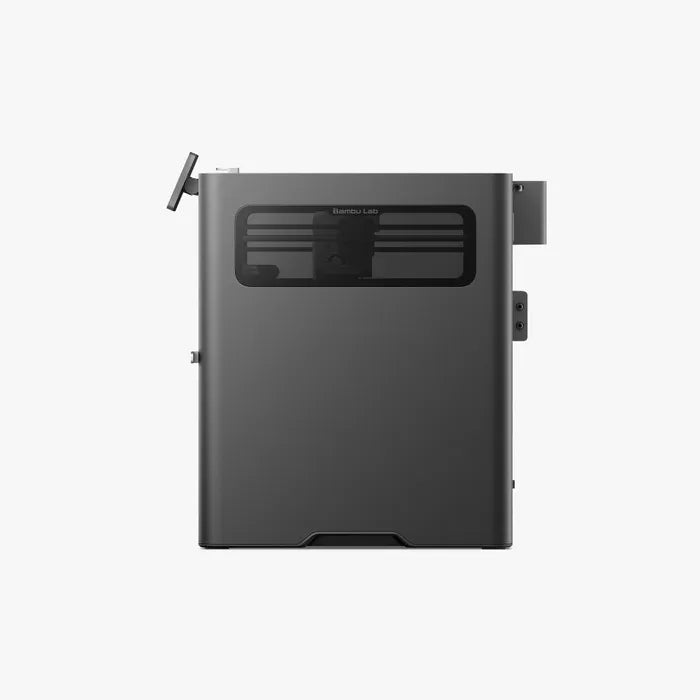

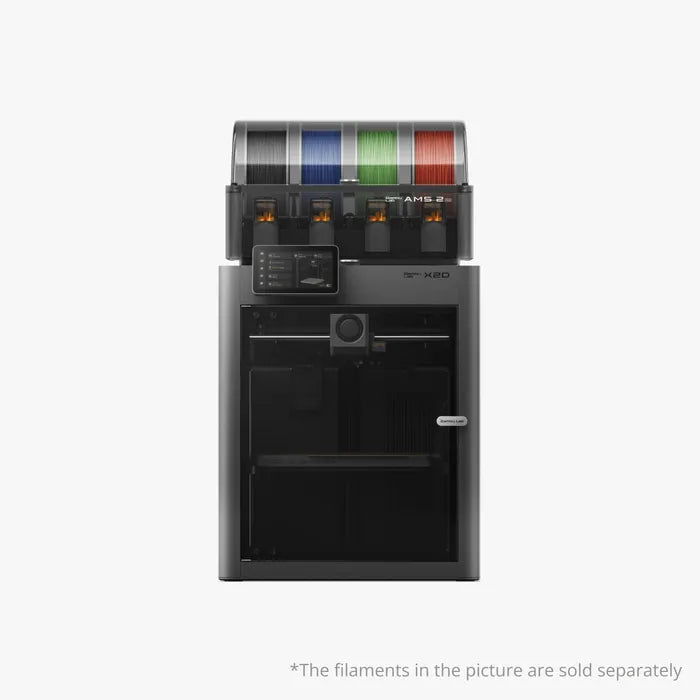

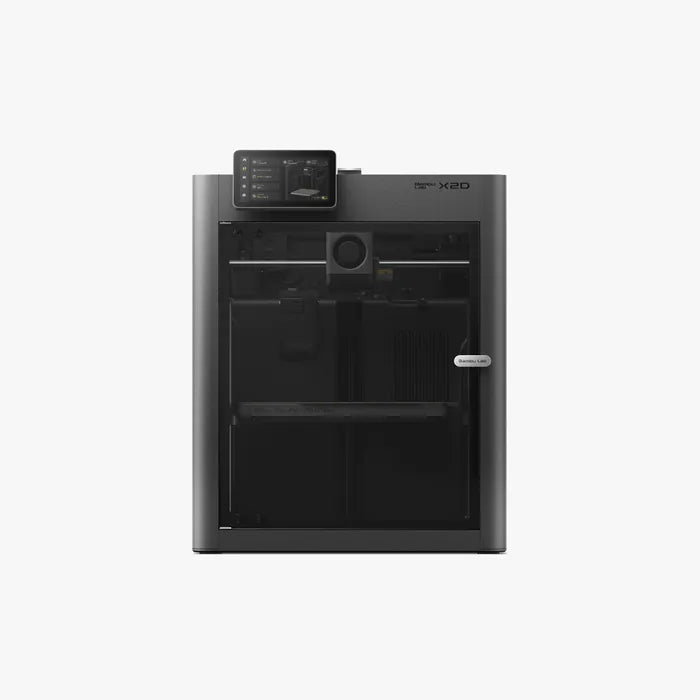

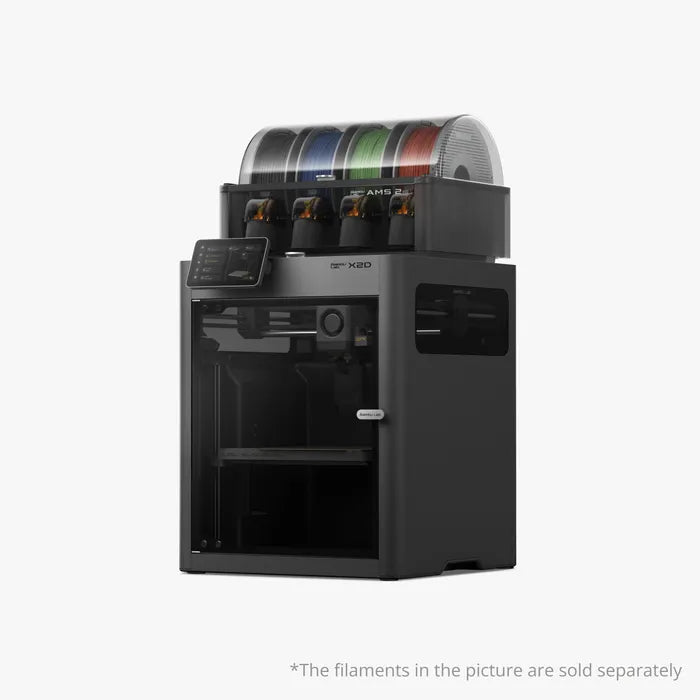

Bambu Lab X2D
- Dual-Nozzle 3D Printing
- Faster Multi-Color Printing & Cleaner Support Removal
- 300 °C Nozzle & 60 °C Active Chamber Heating
- Closed-Loop Servo Motor Extruder
- Full Filament Path AI Detection
- 256 × 256 × 260 mm³ Print Volume
- Voltage Range: 100-120 V
- To connect more than two AMS (including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed
Why Choose Bambu Lab X2D
Dual Nozzle System.
Add more color, more details and more fun.
Tough and soft. - Fuse PLA and TPU in a single model. Create bags, grips, and bumpers that come off the bed ready to use.
Swap colors instantly. - Dual nozzles swap in a split second. Enjoy faster color changes, cleaner transitions, and far less waste².
Finer. Sharper. True to the design.
Tap. Switch. Done. Unlike traditional motor-driven systems, X2D packs a Gear-and-Trigger mechanism into the toolhead. The nozzle-change lever taps the trigger arm, driving an internal gear train to change the nozzle. No extra weight. Just a clean swap.
A lighter toolhead means less inertia and vibration. Even at full speed, surfaces stay flawless - all the way to the top.
Cool it. Before gravity makes it droop.
Two intakes are always better than one. Freshly extruded filament is soft, but the X2D instantly flushes the chamber with cool air from dual left and right intakes. This constant air exchange stabilizes each layer for low-temperature filaments like PLA, cooling every line at exactly the right moment. So even on tricky angles, overhangs stay sharp and bridges stay clean.
Hot Enough Isn't Enough. Heat It Even.
The X2D pairs a 300 °C nozzle with a 65 °C actively heated chamber - hot enough for the majority of engineering filaments like ABS, ASA, and nylon. But temperature alone isn't the point - the active chamber distributes heat evenly, so layers bond strongly from edge to edge. Your large engineering prints come out strong and flat.
Calibration adapts to wear and material changes.
Most printers calibrate flow with a single K factor and use it in all scenarios. Bambu Lab doesn't. Flow Dynamics Calibration³ builds a time-varying, nonlinear model of your entire extrusion system. So whether there's minor residue inside the nozzle, gradual nozzle wear, or slightly damp filament, the system detects, calibrates, and compensates. Smooth surfaces and sharp edges stop being luck. They repeat.
PMSM Servo System: Smoother surfaces start inside the extruder.
Extruder gears grind into filament as they feed it, causing small pressure fluctuations that show up as tiny lines on the surface. Exclusive to Bambu Lab, the PMSM servo system⁵ counters this in real time. With resistance and position sampling at 20 kHz, it adjusts electromagnetic torque on the fly, smoothing out every micro-fluctuation before it reaches the surface.
Smooth surface quality.
Extrusion pressure stays precisely controlled, so flow stays stable and surface finish remains clean and uniform, print after print.
Compensation makes corners sharp and details clean.
Ringing and ghosting blur edges at high speed. Active Vibration Compensation cancels them in real time - so edges print crisp, no matter how fast.
AI Camera keeps an eye on your prints.
Before printing, the AI Liveview Camera and Toolhead Camera scan the build plate for debris and verify plate placement. During printing, they watch for spaghetti, nozzle clumping, and purge-chute jams in real time - pausing the job before it wastes hours of time and filament.|
Start Check
Spaghetti
Nozzle Clumping
Purge Chute jam
Fully-equipped sensors cover every critical stage.
31 sensors span the entire system - monitoring the feeding path, printing process, thermal environment, and machine safety in real time. Every variable that affects your print is measured, checked, and acted on.
Filament Path Monitoring ｜ Thermal Control
All the must-haves for everyday use.
Clean air. Always.
X2D runs a three-stage filtration system every time it prints. A G3 pre-filter, an H12 HEPA filter, and a coconut-shell activated carbon layer work together to reduce odors and airborne particles. The same trusted filtration system used in H Series printers. Quiet. Clean. Ready for everyday spaces⁶.
Safe for your living room.
The X2D is UL 2904 certified for indoor air quality when printing with Bambu PLA Basic and PETG Basic. Confirmed for low particle and VOC emissions - so you can print in your personal space with peace of mind.
Tool-free nozzle swap.
Swap nozzles in seconds. No tools, no hassle. Easy for first-time users.
Quiet enough for overnight prints.
Active Motor Noise Canceling and a noise-optimized air duct keep X2D below 50 dB under typical conditions. Quiet enough for overnight printing⁷.
See every detail, remotely.
Brighter chamber lighting makes Live View and time-lapse clearer than ever, so you can check on prints from anywhere.
One million switches. Still smooth.
X2D's dual-nozzle system completed over 1,000,000 switch cycles in life-cycle testing, maintaining smooth and consistent motion throughout. Built for years of dependable use.
A printer that updates like your phone.
X2D prints beautifully the day it arrives. And it gets better with every update. Major firmware updates land roughly every three months⁸ - new features, better performance, all pushed straight to your machine.
What's in the box
| X2D | X2D AMS Combo | |
|---|---|---|
 X2D |
||
 Textured PEI Build Plate |
||
 External Exhaust Fan Bundle |
||
 Accessory Box |
||
 Spool holder |
||
 AMS 2 Pro (combo version) |
- |
Bambu Lab X2D - Technical Specifications
1）For optimal print quality, please use the main hotend to print these filaments. 2）The printer’s voltage specifications vary by sales region. Before use, please check the label next to the power socket on the printer to ensure the supplied voltage matches the indicated voltage. 3) To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for about 3-5 minutes.
Product Variation Notice
Depending on the production batch, your X2D may or may not include a silicone wiper near the nozzle-switching area. Its function has since been replicated through a software update, so both versions perform identically.
FAQ
1.What are the main differences between the X2D and X1C?
X2D is X1C's next chapter. It adds a dual-nozzle system for up to 25-color printing, an actively heated chamber (up to 65 °C) for engineering filaments, a servo extruder with real-time flow sensing, filament tangle detection, expanded AI monitoring with both liveview and toolhead cameras, and support for Vision Encoder–based motion accuracy calibration. Everything that made X1C great - refined and taken further.
2.What is the maximum print speed and acceleration of the X2D?
When printing with the main nozzle, the maximum movement speed is 1000 mm/s and the maximum acceleration is 20,000 mm/s².
3.Are the left and right hotends identical?
Yes, the left and right hotends are identical in structure and components, and can be used interchangeably between left and right positions.
4.What is the function of the chamber exhaust fan on the X2D's rear panel?
It actively extracts air from the chamber. In Cooling Mode (PLA and other low-temp filaments), it works with the adaptive airflow system to dissipate heat and expel fumes. After printing high-temp filaments, enable "Purify Air At Print End" to clear residual fumes - optionally routing them outdoors via a ventilation pipe.
5.What is the maximum number of AMS units the X2D can connect to?
Single hotend: Supports up to 4 AMS 2 Pro and 8 AMS HT units (12 units total, 24 slots).
Dual hotends: Enables up to 25-color printing when combined with the maximum AMS configuration.
6.The buffer of the X2D has two 6-pin ports on top. Does it support connecting two AMS/AMS 2 Pro/AMS HT units simultaneously?
No. The two ports serve different purposes: One is for connecting AMS/AMS 2 Pro/AMS HT. The other is for connecting the chamber exhaust fan.
To connect multiple AMS units, daisy-chain them using 6-pin cables.
7.Can X2D use the AMS hub?
Incompatible. The interface types are different.
8.Is the X2D's build plate compatible with those of X/P/A series printers?
The X2D supports all current Bambu Lab 256×256 mm build plates. It does not recognize 1st-generation build plates. If the printer fails to detect the build plate type, manually select "Ignore" or disable build plate detection in the on-screen settings.
9.Does the X2D support high-flow nozzles?
Yes. High-flow hotends maintain print quality while significantly increasing print speed, reducing print time by up to 30% compared with standard nozzles.
10.What's the advantage of having two extruders?
The main extruder (in the toolhead) handles precise flow control. The auxiliary extruder (rear panel) overcomes long-distance feeding resistance. Together, they keep the toolhead light and agile while ensuring rock-steady filament delivery - meaning faster color switches, less waste, and a full 256 × 256 mm build area with no increase in machine footprint.
1. In actual testing, print quality from the auxiliary nozzle is slightly lower than that of the main nozzle.
2. Recommended to use official Bambu Lab filaments with the auxiliary nozzle, especially official PLA for model printing. Third-party filaments on the auxiliary nozzle may not deliver optimal print quality. For a full list of compatible materials, refer to the Spec Sheet.
3. Flow Dynamics Calibration on X2D applies to the main nozzle only.
4. "Other Printers" shown for illustrative purposes only. Results may vary by printer model and configuration; not all printers exhibit this behavior.
5. PMSM servo motor is equipped on the main extruder only.
6. For optimal performance, replace filters according to the recommended maintenance schedule.
7. Suitable for overnight printing when the printer is placed in a separate room from the sleeping area. Individual noise perception may vary.
8. Based on the average update cadence across Bambu Lab printers. Actual timing may vary.
9. X2D features a main nozzle and an auxiliary nozzle with different filament capabilities. See Spec Sheet for full compatibility details.
10. Creator projects are provided for illustrative purposes only. Bambu Lab does not endorse, and disclaims any representations or warranties regarding creator projects, including, without limitation, the safety, marketability, or usability of any 3D printed works based on such projects. See our Terms of Service for more information.
11. All product data for the X2D is based on Bambu Lab's internal testing. Actual results may vary due to individual product differences, user habits, and environmental conditions. Please refer to actual usage for reference.
