• Reliable High-Speed TPU Printing — Save Up to 30% Print Time
• Specially Tuned for Bambu TPU Filaments
• Easy Installation

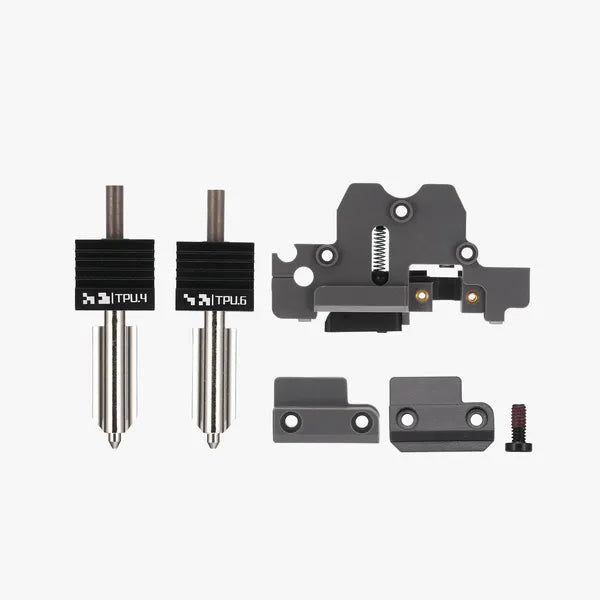

• The H2D TPU High-Flow Kit includes 0.4 mm and 0.6 mm TPU High-Flow hotends and the required components for installation.

1. Limitations: After installing the TPU hotend, the filament cutter installation is not supported, so the filament cutter function cannot be used, and the right nozzle does not support automatic filament changing and automatic filament feeding and retracting.

2. Only flexible filaments are allowed: The TPU hotend has a special inner coating, printing hard filaments is prohibited (such as PLA, PETG, TPU for AMS), otherwise it will cause the coat to wear and fail.

3. Position Limitation: The TPU hotend can only be installed on the right nozzle. If it is installed on the left nozzle, it will cause the nozzle lifting mechanism to malfunction.

Reliable High-Speed TPU Printing



The specially designed hotend reduces extrusion resistance and extends the melting zone, enabling faster and more stable TPU printing. When printing 90A TPU, it delivers up to 100% higher flow rate and cuts print time by around 30% for typical applications such as footwear.







Specially Tuned for Bambu TPU Filaments

Print parameters are precisely fine-tuned for all Bambu TPU filaments when used with the TPU High-Flow Kit. No manual tweaking required—sticky TPU materials to print smoothly right out of the box.

Easy Installation

Installation takes just a few minutes. Simply pop off the front cover, remove the filament cutter, and slide in the High-Flow hotend—ready to print in no time.

Comparison of Different Nozzle Sizes

	H2D Standard Flow Hotend		H2D TPU High-Flow Hotend
TPU	0.4 mm Nozzle	0.6 mm Nozzle	0.4 mm Nozzle	0.6 mm Nozzle
85A	Not Compatible	2.2 mm³/s	2.5 mm³/s	4.8 mm³/s
90A	2.8 mm³/s	2.8 mm³/s	5.6 mm³/s	5.6 mm³/s
95A HF	12 mm³/s	12 mm³/s	16 mm³/s	16 mm³/s



Note: Parameter optimization and speed enhancements currently apply only to Bambu TPU 85A, Bambu TPU 90A, and Bambu TPU 95A HF.



Filament Compatibility

Bambu TPU 85A

Bambu TPU 90A

Bambu TPU 95A

Bambu TPU 95A HF

  Generic TPU

Installation Guide

Please refer to the installation guide for the H2D TPU High-Flow Kit available on Bambu Lab Wiki.

For TPU printing recommendations, please also refer to the TPU 85A & 90A Printing Guide for the H2 Series on Bambu Lab Wiki.



In the Box



Item	Quantity

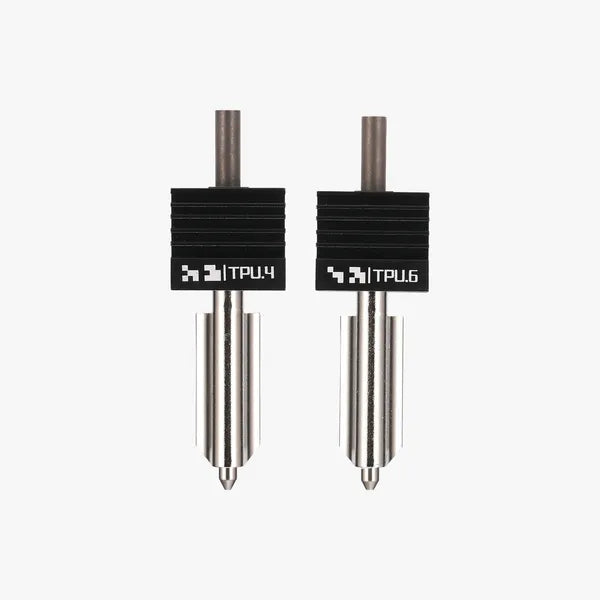

0.4 mm High-Flow TPU Hotend	1
0.6 mm High-Flow TPU Hotend	1
TPU High-Flow Front Cover Guide	1
TPU Hotend Cover	1
Hotend Cover	1
M2×5 Screws for Hotend Cover	2

Product Specifications

Materials	Plastic, Metal	Packaging Size	105*54*33 mm
Color	Black	Packaging Weight	46.9 g

4. Installation Guide: Please read the official H2D TPU High-Flow Kit installation guide on Bambu Lab Wiki before purchasing.

5. Model Compatibility: Only supported on H2D and H2D Pro. It is not compatible with other models.
